LM11CMIR Series- 1.1'' 12-50mm 12MP C-Mount IR Corrected Lenses

1. Suitable for 1.1" 12MP sensors
2. Usable lineup for ANPR, 12mm/16mm/25mm/35mm/50mm
3. Manual iris and P-iris available
4. No-focus-shift between visible light to NIR
5. High spectral transmittance between visible light to NIR

Product Description:

Technical Specifications:


ModelFocal LengthImage SizeResolutionF No.MountDimension

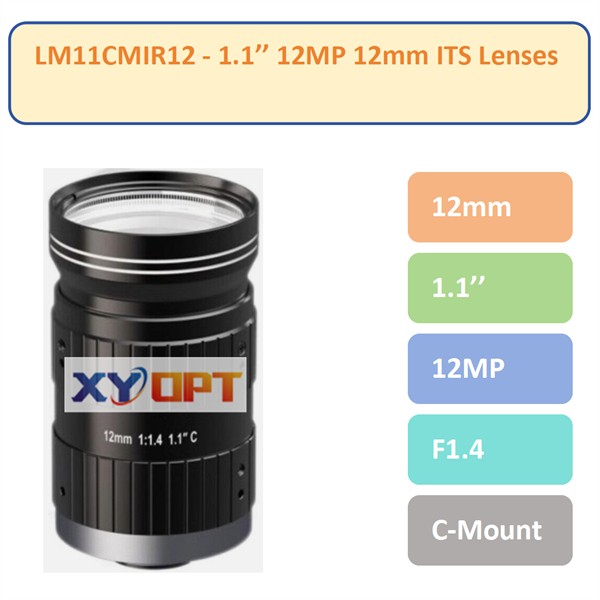

LM11CMIR1212mm1.1''12MPF1.4C-MountΦ46.7×77.8mm

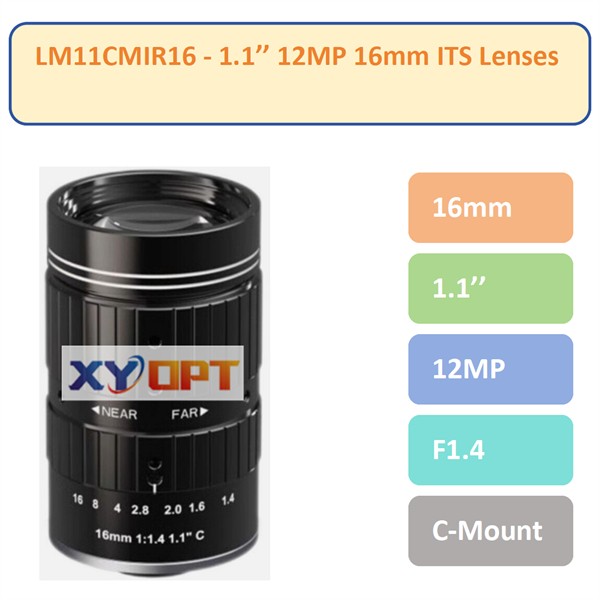

LM11CMIR1616mm1.1''12MPF1.4C-MountФ48x84.25 mm

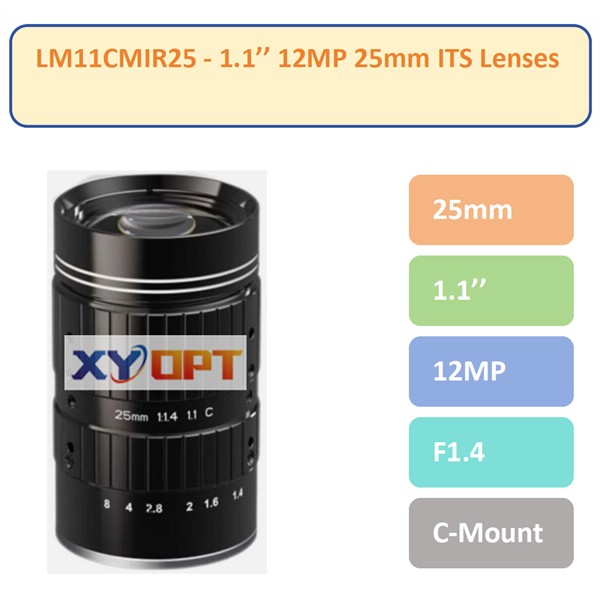

LM11CMIR2525mm1.1''12MPF1.4C-MountФ47×84.6 mm

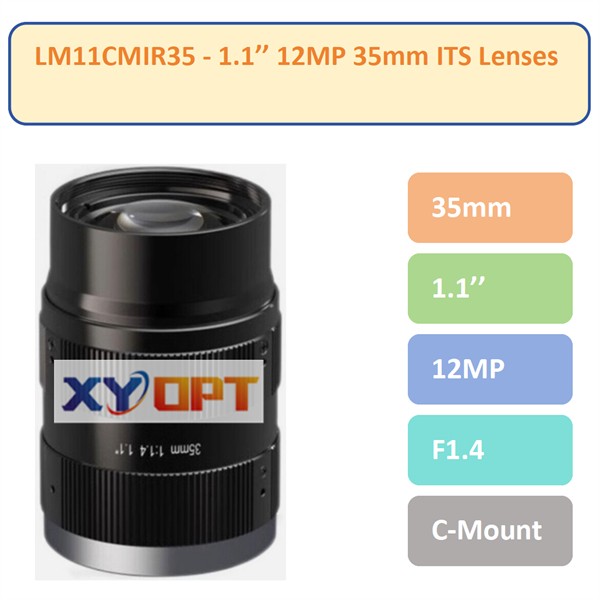

LM11CMIR3535mm1.1''12MPF1.4C-MountФ50×76.1mm

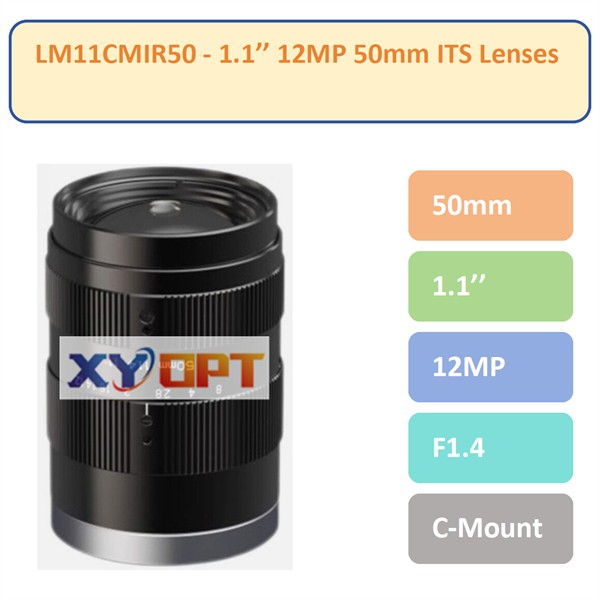

LM11CMIR5050mm1.1''12MPF1.4C-MountФ56×80.2mm
