• 1.1" format, 12MP resolution, 2.74µm pixel pitch; compatible with Sony IMX267, IMX304, IMX565 and IMX902 sensors • IR-corrected day-night optical design, maintaining focus from visible light through 850nm NIR with minimal focus shift • Built for ANPR/ALPR, intelligent traffic systems and long-range outdoor surveillance • Manual iris and P-iris versions available

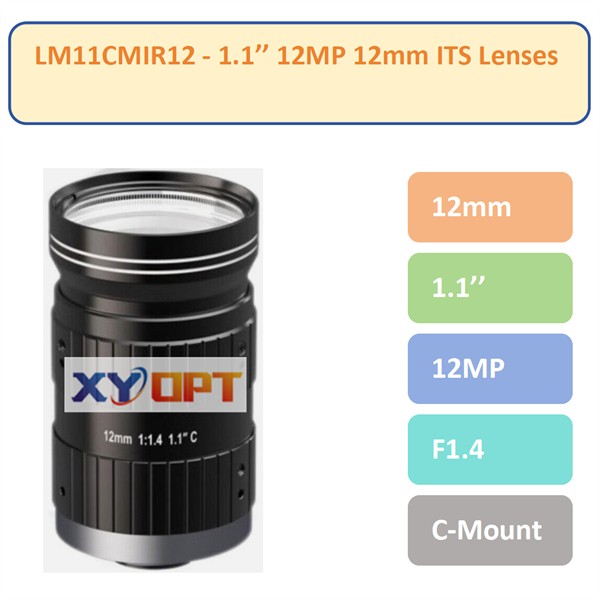

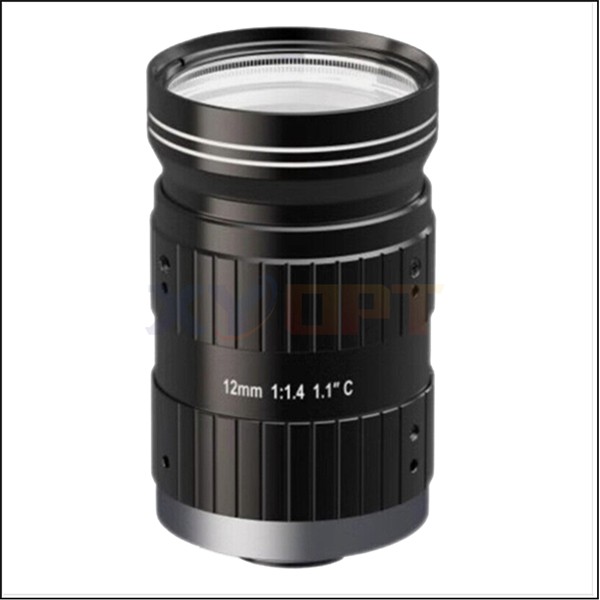

The LM11CMIR12 is a 1.1-inch, 12MP, F1.4 IR-corrected C-mount prime lens with a 12mm wide-angle focal length, engineered for large-format image sensors.
Its day-night optical design keeps focus aligned from visible daylight through near-infrared illumination, delivering consistent sharpness across 24/7 imaging.
Designed for wide-coverage ANPR/ALPR at near-to-mid range, multi-lane intersections, parking access and tunnel entrances. A full lineup from 12mm to 70mm
is available, with both manual iris and P-iris options. Datasheets, MTF reports and evaluation samples are provided on request.
Technical Specifications:
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Dimension |
| LM11CMIR12 | 12mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø46.7×77.8mm |
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Dimension |
| LM11CMIR12 | 12mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø46.7×77.8mm |
| LM11CMIR16 | 16mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø48x84.25 mm |
| LM11CMIR25 | 25mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø47×84.6 mm |
| LM11CMIR35 | 35mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø50×76.1mm |
| LM11CMIR50 | 50mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø56×80.2mm |
Full technical datasheets, MTF test reports, and evaluation samples are available upon request. We also support custom optical specifications tailored
to your specific project requirements. Contact our technical sales team for detailed pricing and lead time information.
