1. Cover range of 8mm/12mm/16mm/25mm/35mm/50mm 2. Ultra-Compact design for IMX250/IMX264 cameras 3. TV Free distortion less than 1% 4. High performace for 5 Mega piexl camera
K23C5M series C-Mount Machine Vision Lenses for 2/3" 5MP Sensor
The K23C5M series Machine Vision Lenses cover range from 8mm to 50mm. These lenses support Sony IMX250/IMX264 sensor. Products are mainly used in machine vision and industrial inspection for Electronics industry, Automotive industry, Food & Beverages, Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Mount |

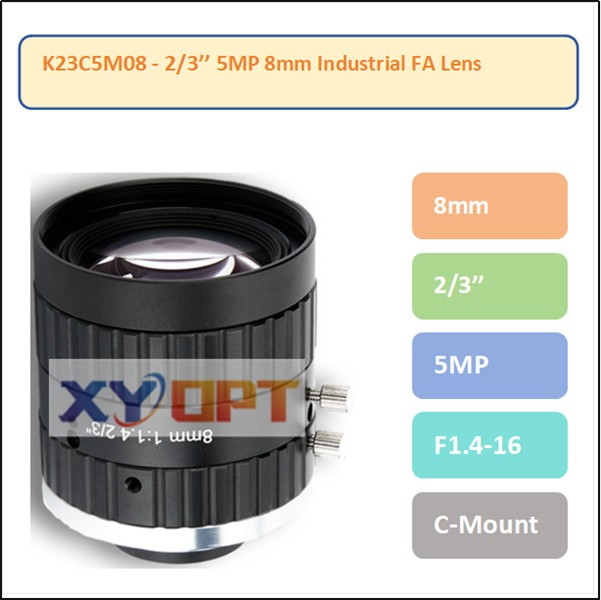

| K23C5M08 | 8mm | 2/3" | F1.4-16 | ﹤1% | 0.1m | M37×P0.5 | C-Mount |
| K23C5M12 | 12mm | 2/3" | F1.4-16 | ﹤-0.8% | 0.15m | M30.5×P0.5 | C-Mount |

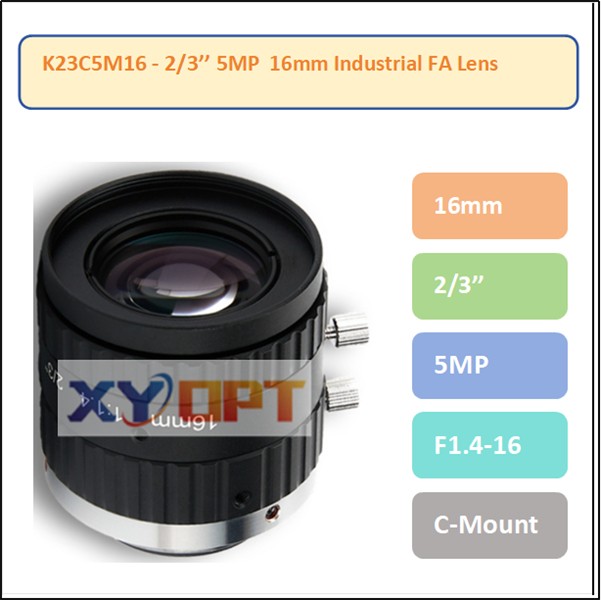

| K23C5M16 | 16mm | 2/3" | F1.4-16 | ﹤0.1% | 0.1m | M30.5×P0.5 | C-Mount |
| K23C5M25 | 25mm | 2/3" | F1.4-16 | ﹤0.2% | 0.1m | M30.5×P0.5 | C-Mount |

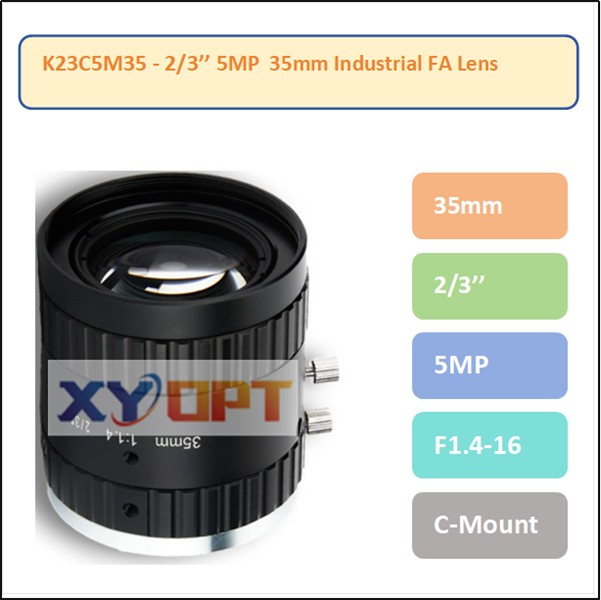

| K23C5M35 | 35mm | 2/3" | F1.4-16 | ﹤-0.8% | 0.15m | M37×P0.5 | C-Mount |
| K23C5M50 | 50mm | 2/3" | F1.4-C | ﹤-0.8% | 0.3m | M37×P0.5 | C-Mount |
