1. Cover range of 6mm/8mm/12mm/16mm/25mm/35mm/50mm 2. Ultra-Compact design, High relative illumination 3. Suitable for 1.1" 20MP Sony IMX531/IMX532/IMX183 sensor 4. Ultra Low Distorion from Near to Far 5. For sensors with a pixel size from 2.4μm
P11C20M series C-Mount Machine Vision Lenses for 1.1" 20MP Sensor
The P11C20M series industrial FA Lenses cover range from 6mm to 50mm. These lenses support 1.1'' Sony IMX531, IMX532, IMX183 sensors
with 20megapixel resolution. Products are mainly used in machine vision and industrial inspection for Electronics industry, Automotive industry,
Food & Beverages, Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Mount |

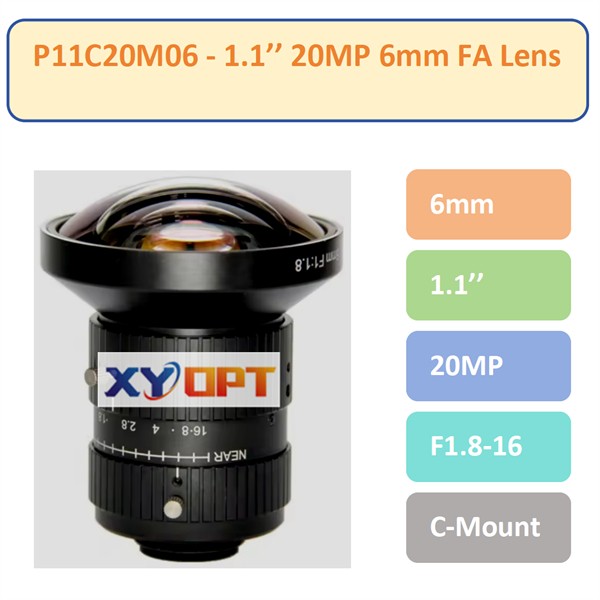

| P11C20M06 | 6mm | 1.1" | F1.8-16 | ﹤2.5% | 0.1m | / | C-Mount |
| P11C20M08 | 8mm | 1.1" | F1.4-16 | ﹤5.5% | 0.1m | M58×P0.75 | C-Mount |

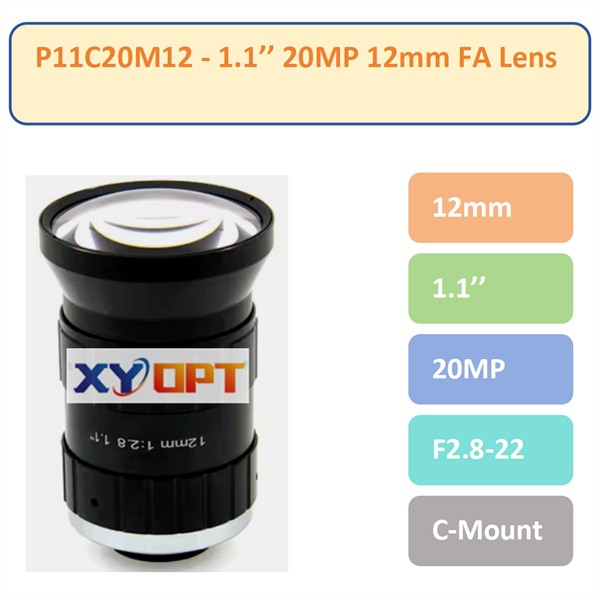

| P11C20M12 | 12mm | 1.1" | F2.8-22 | ﹤1.5% | 0.1m | / | C-Mount |

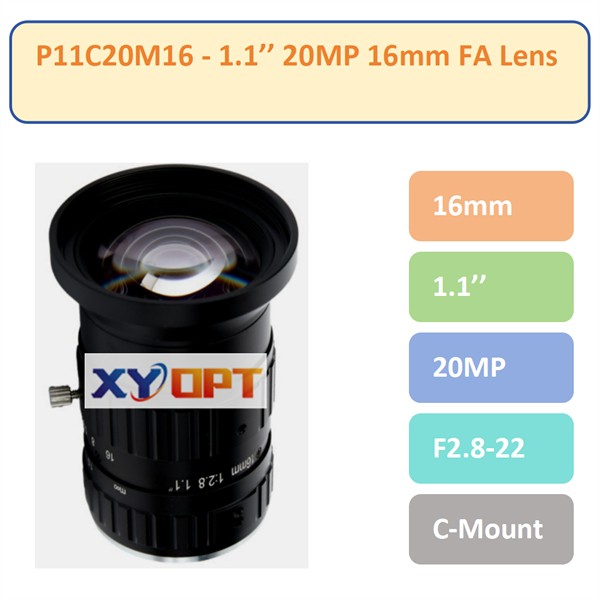

| P11C20M16 | 16mm | 1.1" | F2.8-22 | ﹤0.5% | 0.1m | M35.5×P0.5 | C-Mount |
| P11C20M25 | 25mm | 1.1" | F2.8-22 | ﹤0.1% | 0.1m | M35.5×P0.5 | C-Mount |

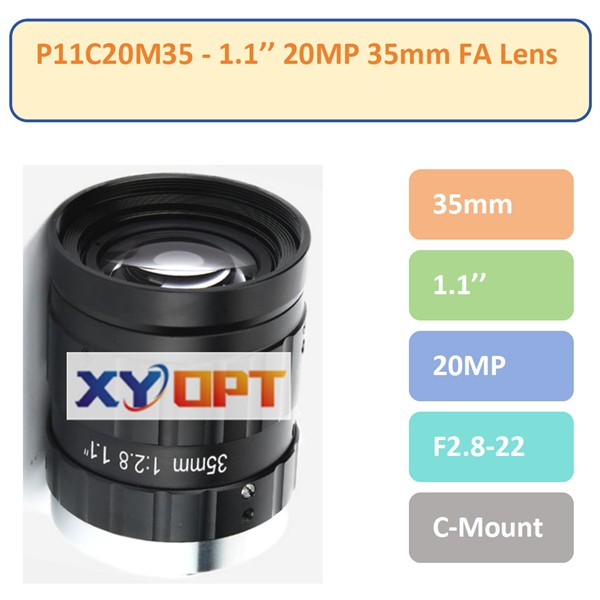

| P11C20M35 | 35mm | 1.1" | F2.8-22 | ﹤0.02% | 0.2m | M35.5×P0.5 | C-Mount |

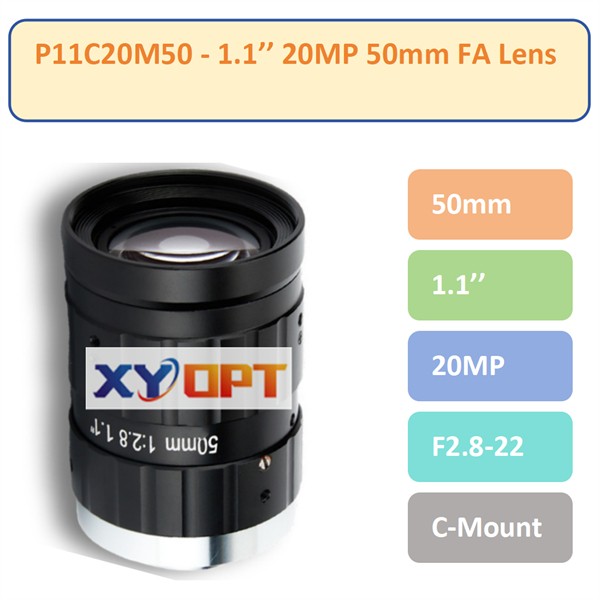

| P11C20M50 | 50mm | 1.1" | F2.8-22 | ﹤0.04% | 0.3m | M35.5×P0.5 | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
