1. Compatible with IMX178/IMX226 sensors 2. Range covers 8mm/12mm/16mm/25mm 3. 1/1.8'' 12MP F5.6 M12 Low Distortion Lenses 4. High transmittance from center to corner 5. Smaller aperture, larger depth of field
Technical Specifications:
| Model | Focal Length | Resolution | Image Size(mm) | F NO. | MOD | FOV(D*H*V) | TV Distortion | Mount |

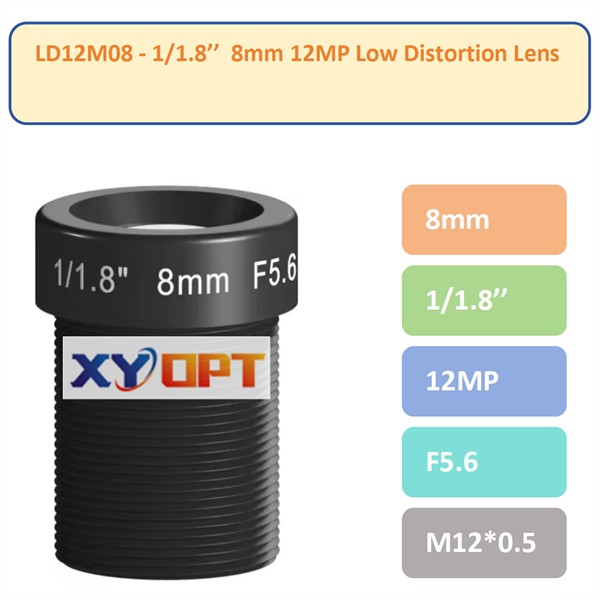

| LD12M08 | 8mm | 12MP | φ9.3 | F5.6 | 50mm | 60x49.3x38 | -0.90% | M12*0.5 |

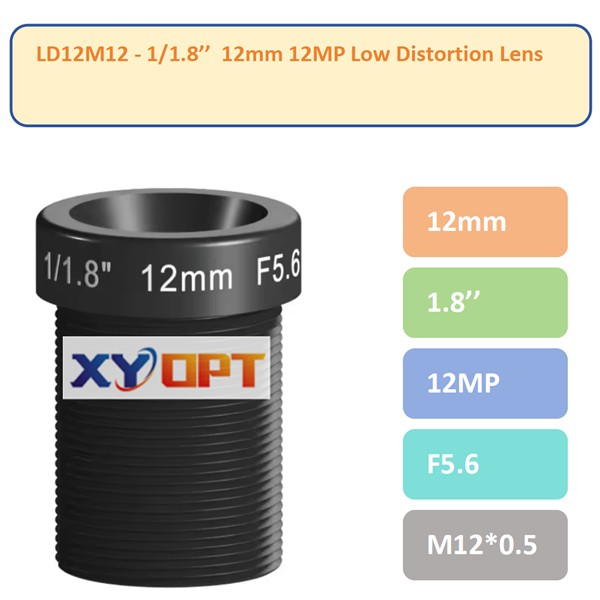

| LD12M12 | 12mm | 12MP | φ9.3 | F5.6 | 60mm | 40.3x33.15 x 22.45 | -0.30% | M12*0.5 |

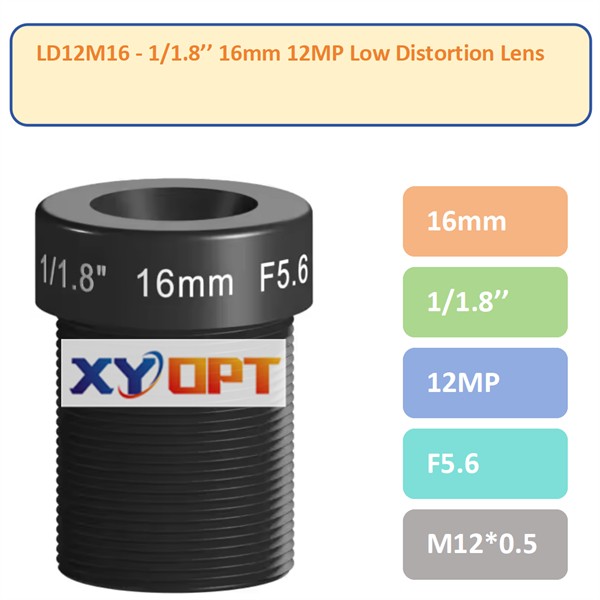

| LD12M16 | 16mm | 12MP | φ9.3 | F5.6 | 50mm | 30.2x20.35x 13.65 | -0.21% | M12*0.5 |
| LD12M25 | 25mm | 12MP | φ9.3 | F5.6 | 100mm | 18.95x11.95x 7.99 | 0.12% | M12*0.5 |
Screw mount (S-Mount) lenses in M12, M10 thread
