1. Cover range of 8mm/12mm/16mm/25mm/35mm/50mm/75mm 2. Ultra-Compact design, High relative illumination 3. Suitable for Sony IMX250/IMX178/IMX536 sensor 4. Ultra Low Distorion from Near to Far 5. For sensors with a pixel size from 2.4μm
L23C10M series C-Mount Machine Vision Lenses for 2/3" 10MP Sensor
The L23C10M series Machine Vision Lenses cover range from 8mm to 75mm. These lenses support Sony IMX250/IMX178/IMX536 sensor. Products are mainly used in machine vision and industrial inspection for Electronics industry, Automotive industry, Food & Beverages, Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Mount |
| L23C10M08 | 8mm | 2/3" | F2.8-16 | ﹤1% | 0.1m | M30.5×P0.5 | C-Mount |

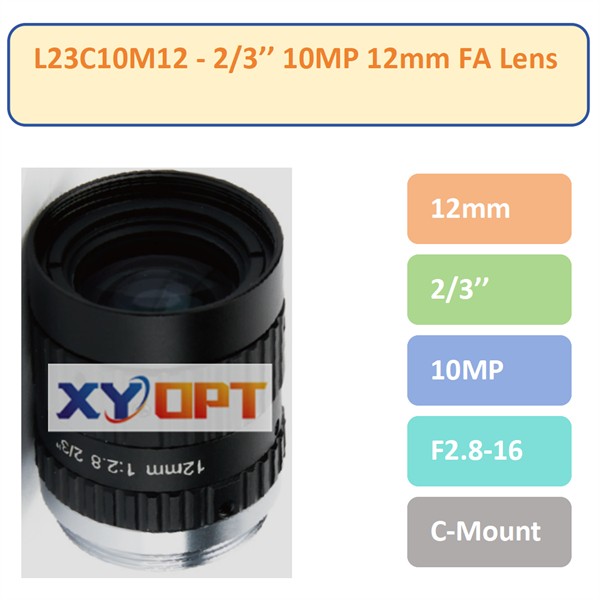

| L23C10M12 | 12mm | 2/3" | F2.8-16 | ﹤0.2% | 0.1m | M27×P0.5 | C-Mount |
| L23C10M16 | 16mm | 2/3" | F2.8-16 | ﹤0.1% | 0.1m | M27×P0.5 | C-Mount |

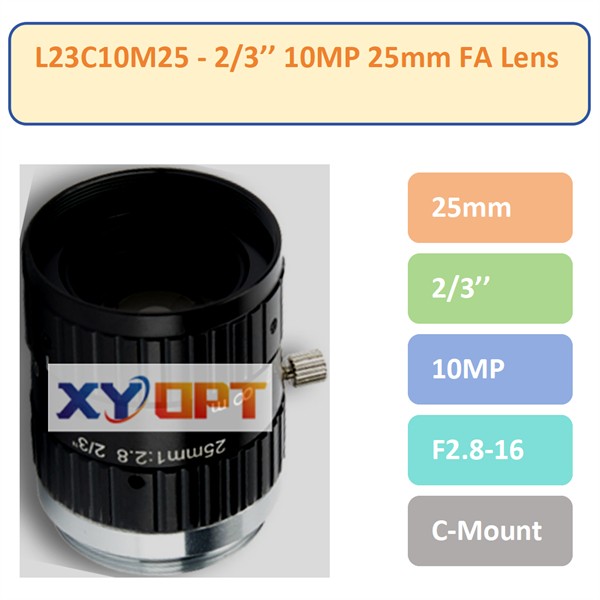

| L23C10M25 | 25mm | 2/3" | F2.8-16 | ﹤0.1% | 0.1m | M27×P0.5 | C-Mount |

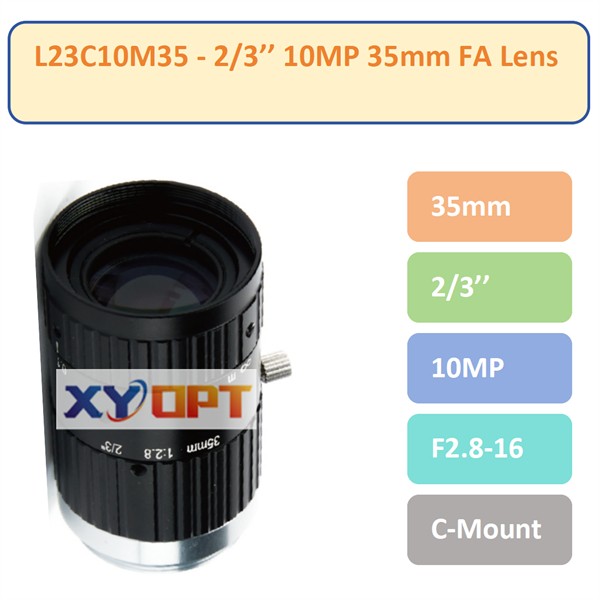

| L23C10M35 | 35mm | 2/3" | F2.8-16 | ﹤0.1% | 0.1m | M27×P0.5 | C-Mount |

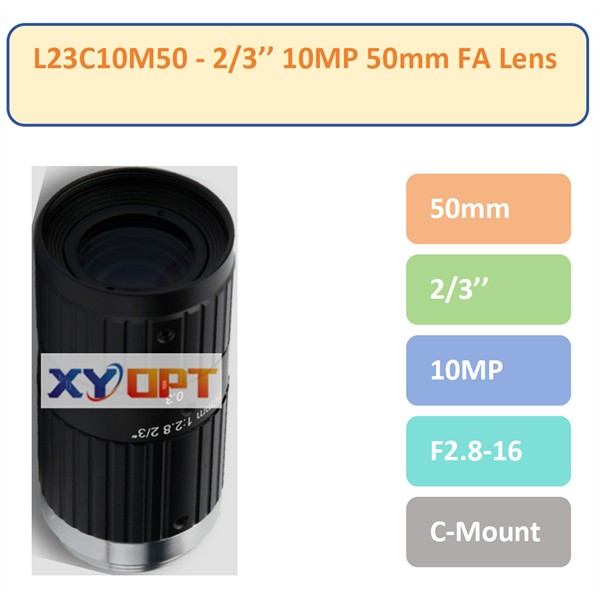

| L23C10M50 | 50mm | 2/3" | F2.8-16 | ﹤-0.1% | 0.3m | M27×P0.5 | C-Mount |
| L23C10M75 | 75mm | 2/3" | F2.8-22 | ﹤0.2% | 0.4m | M30.5×P0.5 | C-Mount |
