• 1.1" 12MP, 2.74µm pixel, compatible with IMX267/IMX304/IMX565/IMX902 • IR-corrected, minimal focus shift from visible to 850nm NIR • For ANPR/ALPR, speed & traffic enforcement applications • Manual iris and P-iris versions available

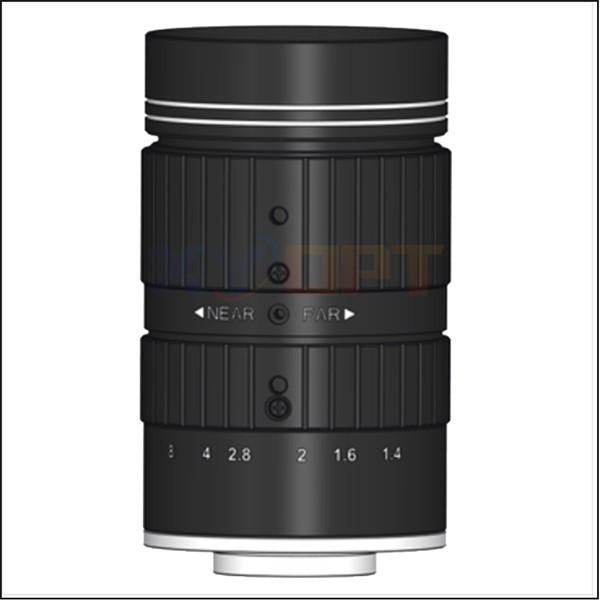

The LM11CMIR25 is a 1.1-inch, 12MP, F1.4 IR-corrected C-mount lens with a 25mm focal length, engineered for large-format image sensors.
Its day-night optical design keeps focus aligned from visible daylight through near-infrared illumination, delivering consistent sharpness across 24/7 imaging.
The 25mm focal length is optimized for mid-range ANPR, medium-distance toll enforcement and general urban traffic enforcement.
Typical applications include automatic number plate recognition (ANPR/ALPR), speed enforcement, traffic enforcement, red-light camera systems and
electronic toll collection. A full lineup from 12mm to 70mm is available, with both manual iris and P-iris options. Datasheets, MTF reports and evaluation
samples are provided on request.
Technical Specifications:
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Dimension |
| LM11CMIR25 | 25mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø47×84.6 mm |
| Model | Focal Length | Image Size | Resolution | F No. | Mount | Dimensions |
| LM11CMIR12 | 12mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø46.7×77.8mm |
| LM11CMIR16 | 16mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø48x84.25 mm |
| LM11CMIR25 | 25mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø47×84.6 mm |
| LM11CMIR35 | 35mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø50×76.1mm |
| LM11CMIR50 | 50mm | 1.1'' | 12MP | F1.4 | C-Mount | Ø56×80.2mm |
Full technical datasheets, MTF test reports, and evaluation samples are available upon request. We also support custom optical specifications tailored
to your specific project requirements. Contact our technical sales team for detailed pricing and lead time information.
Screw mount (S-Mount) lenses in M12, M10 thread
