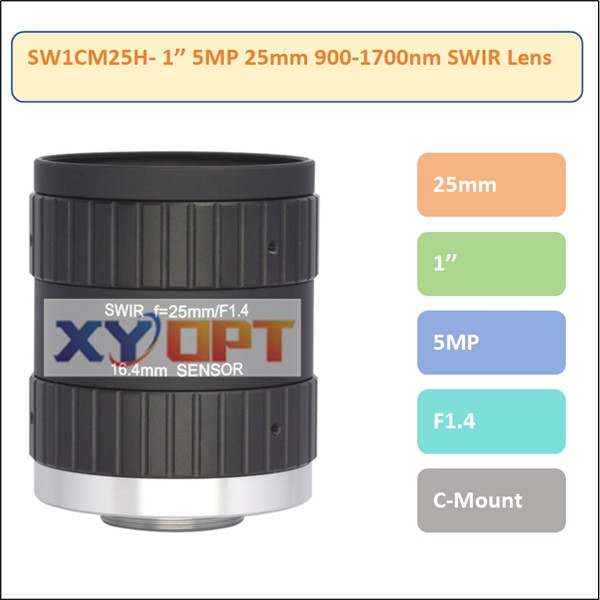

1. Optimised for SWIR: High transmission from 900nm up to 1700nm 2. 1" format, 5Megapixel C-mount industrial lens 3. Specifically designed for Machine Vision applications in SWIR 4. For applications such as solar cell inspection, waste sorting
Overview:
Shortwave Infrared (SWIR) wavelength band offers unique imaging advantages over visible and other thermal bands. The SWIR band
(900-1700 nm) lenses are designed to work with Sony Semiconductor IMX990/991. In the design of the lenses, great importance was
attached to a good image quality and a large aperture (small F/#). It is quietly earning a growing place in industrial machine vision for
electronic board inspection, material/food sorting, solar cell inspection, quality inspection, and in security applications. SWIR lenses are
utilized where other detectors or cameras are not sensitive enough for finite detail recognition.
Technical Specifications:
| Model | Focal Length | Image Size | F NO. | TV Distortion | MOD | Mount |
| SW1CM25H | 25mm | 1'' | F1.4-F22 | -1.38%@y=5.5mm | 0.3m | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
