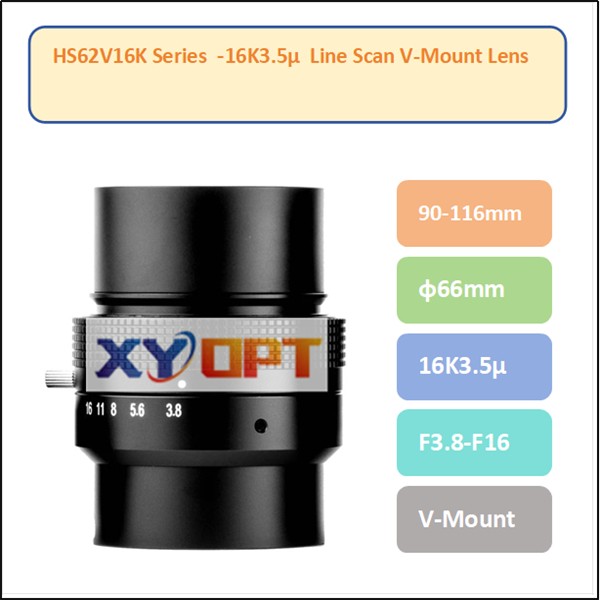

1. Large Image Size for φ66mm 2. Specifically developed for 16K 3.5μ ultra-fine line scan cameras 3. Resolution of the lens up to 160lp/mm 4. Application for FPD and PCB inspection systems
Technical Specifications:
| Model | Resolution | Magnification | Image Size (mm) | WD(mm) | Conjugate Distance (mm) | TV Distortion | Filter Size |
| HS66V16K-0.26X | 16K3.5μ | 0.26x | φ66 | 497.85 | 672.16 | 0.0100% | M45×P0.5 |
| HS66V16K-0.33X | 16K3.5μ | 0.33x | φ66 | 412 | 595 | 0.0010% | M45×P0.5 |
| HS66V16K-0.42X | 16K3.5μ | 0.42x | φ66 | 339.74 | 530.1 | 0.0070% | M45×P0.5 |
| HS66V16K-0.5X | 16K3.5μ | 0.5x | φ66 | 296.2 | 496 | 0.0008% | M45×P0.5 |
| HS66V16K-0.67X | 16K3.5μ | 0.67x | φ66 | 237.4 | 453.5 | 0.1000% | M45×P0.5 |
| HS66V16K-0.7X | 16K3.5μ | 0.7x | φ66 | 229.4 | 447.2 | 0.0000% | M45×P0.5 |
| HS66V16K-0.75X | 16K3.5μ | 0.75x | φ66 | 220.8 | 444.8 | 0.0008% | M45×P0.5 |
