1. Cover range of 12mm/16mm/25mm/35mm/50mm 2. Ultra-Compact design, High relative illumination 3. Suitable for 1.1" 25MP sensors with a pixel size from 2.4μm 4. Ultra Low Distorion from Near to Far

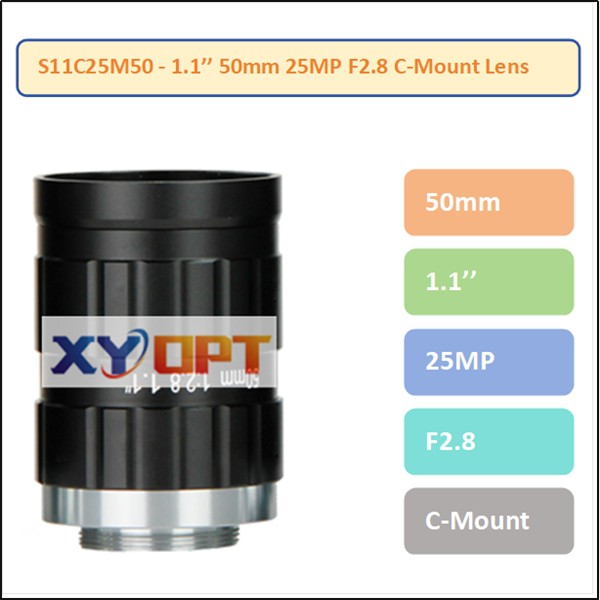

S11C25M series - 1.1" 50mm 25MP C-Mount Lenses for Machine Vision Cameras
The S11C25M series industrial FA Lenses cover range from 12mm to 50mm. These lenses support 1.1'' Sony IMX530, IMX540, IMX531, sensors
with 25megapixel resolution. Products are mainly used in machine vision and industrial inspection for Electronics industry, Automotive industry,
Food & Beverages, Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Mount |
| S11C25M50 | 50mm | 1.1" | F2.8-16 | ﹤0.1% | 0.3m | M40.5×P0.5 | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
