1. Cover range of 12.5mm/16mm/25mm/35mm/50mm/75mm 2. Ultra-Compact design, High relative illumination 3. TV Free distortion less than 1% 4. High performace for 5 Mega piexl camera
T1C5M series C-Mount Machine Vision Lenses for 1" 5MP Sensor
The T1C5M series Machine Vision Lenses cover range from 12.5mm to 75mm. These lenses support Sony IMX252/ CMV4000 sensor.
Products are mainly used in machine vision and industrial inspection for Electronics industry, Automotive industry, Food & Beverages,
Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Mount |
| T1C5M125 | 12.5mm | 1" | F1.4-16 | ﹤1.8% | 0.1m | M46×P0.75 | C-Mount |
| T1C5M16 | 16mm | 1" | F1.4-16 | ﹤0.2% | 0.1m | M46×P0.75 | C-Mount |
| T1C5M25 | 25mm | 1" | F1.4-16 | ﹤0.1% | 0.1m | M40.5×P0.5 | C-Mount |
| T1C5M35 | 35mm | 1" | F1.4-16 | ﹤0.1% | 0.15m | M46×P0.75 | C-Mount |

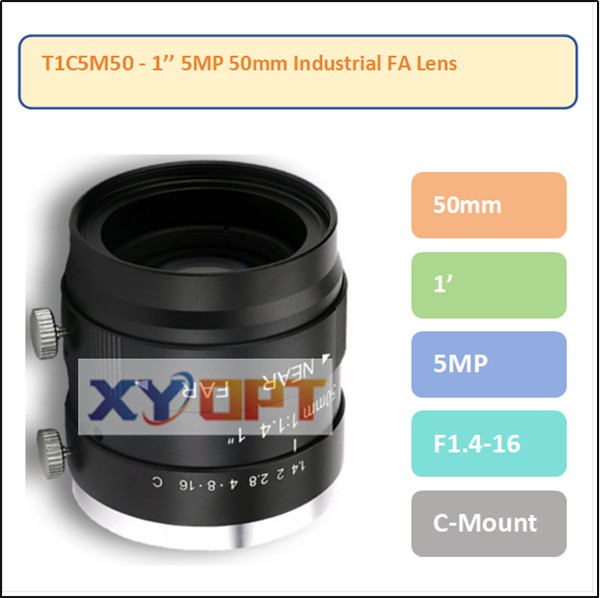

| T1C5M50 | 50mm | 1" | F1.4-16 | ﹤0.1% | 0.3m | M46×P0.75 | C-Mount |
| T1C5M75 | 75mm | 1" | F1.8-16 | ﹤0.1% | 0.8m | M55×P0.75 | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
