1. Compatible with IMX990/IMX991/IMX992/IMX993 Visible + SWIR sensors 2. Range covers 12mm/16mm/25mm/35mm 3. Fully corrected focus shift in visible and SWIR range (400nm-1700nm) 4. Unique coating technology delivers high transmission from 400nm to 1700nm

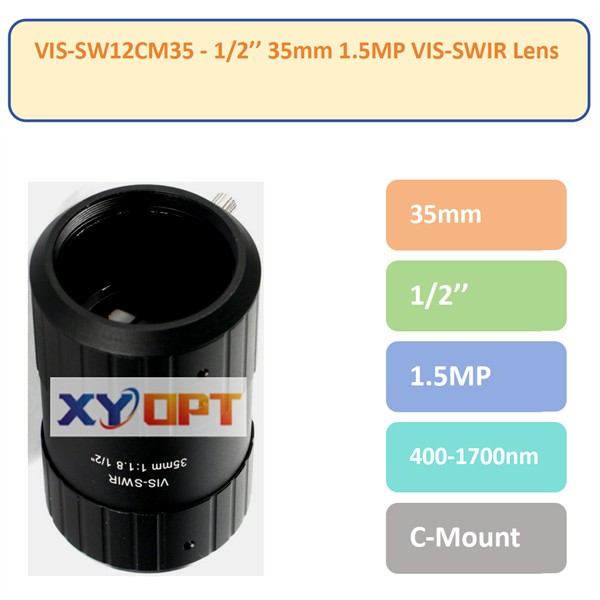

VIS-SW12CM35 maximizes performance from visible to SWIR wavelengths simultaneously. A new optical design reduces focus shift when imaging at different wavelengths. With 1.5MP resolution, f/1.8 aperture, and coverage from 400 – 1700nm, these lenses are ideal for machine vision inspection applications such as semiconductor/silicon inspection, moisture detection, fill level detection, and product sorting.
Technical Specifications:
| Model | Focal Length | Resolution | Image Size | F NO. | MOD | FOV(H*V) | TV Distortion | Mount |
| VIS-SW12CM35 | 35mm | 1.5MP | 1/2'' | F1.8-16 | 100mm | 7.5x5.95 | ＜0.14% | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
