1. Cover range of 4mm/6mm/8mm/12mm/16mm/25mm/35mm/50mm/75mm 2. Ultra-Compact design, High relative illumination 3. Suitable for 1/1.8" 6MP Sony IMX178/IMX537 CMOS sensor 4. Ultra Low Distorion from Near to Far 5. For sensors with a pixel size from 2.4μm

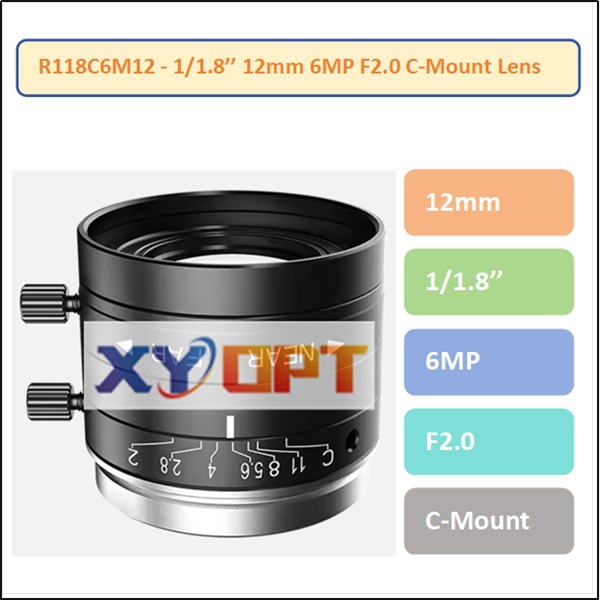

R118C6M series - 1/1.8" 4-75mm 6MP C-Mount Lenses for Machine Vision Cameras
The R118C6M series Machine Vision Lenses cover range from 4mm to 75mm. These lenses support 1/1.8'' Sony IMX178/IMX537
sensor with 6megapixel resolution. Products are mainly used in machine vision and industrial inspection for Electronics industry,
Automotive industry, Food & Beverages, Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Lens Mount |
| R118C6M12 | 12mm | 1/1.8" | F2.0-C | ﹤0.3% | 0.1m | M25.5×P0.5 | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
