1. Cover range of 12mm/16mm/25mm/35mm/50mm 2. Ultra-Compact design, High relative illumination 3. Suitable for 1.1" 20MP Sony IMX530/IMX531/IMX532 sensor 4. Ultra Low Distorion from Near to Far 5. For sensors with a pixel size from 2.4μm
J43C20M series C-Mount Machine Vision Lenses for 4/3" 20MP Sensor
The J43C20M series industrial FA Lenses cover range from 6mm to 50mm. These lenses support 1.1'' Sony IMX530, IMX531, IMX532, sensors with 20megapixel resolution. Products are mainly used in machine vision and industrial inspection for Electronics industry, Automotive industry, Food & Beverages, Printing industry, Logistics & Robotics, Traffic and transportation etc.
Technical Specifications:
| Model | Focal Length | Image Size | F.NO | TV Distortion | MOD | Filter Size | Mount |

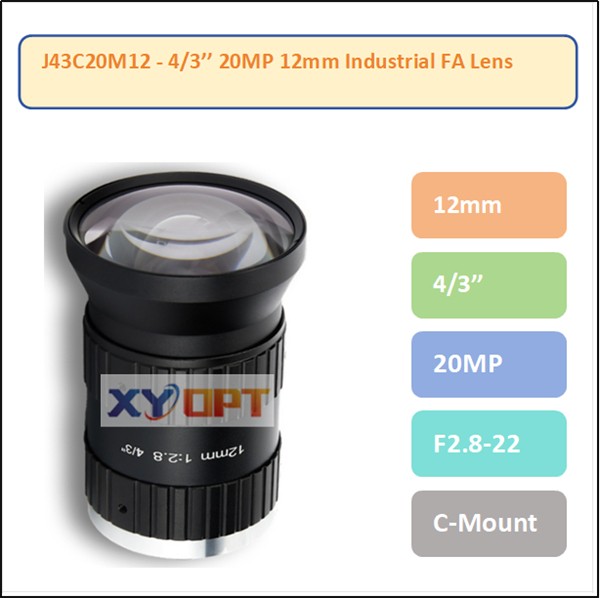

| J43C20M12 | 12mm | 4/3" | 2.8-22 | ﹤2% | 0.1m | / | C-Mount |
| J43C20M16 | 16mm | 4/3" | 2.8-22 | ﹤1% | 0.1m | M35.5×P0.5 | C-Mount |
| J43C20M25 | 25mm | 4/3" | 2.8-22 | ﹤0.3% | 0.1m | M35.5×P0.5 | C-Mount |
| J43C20M35 | 35mm | 4/3" | 2.8-22 | ﹤0.04% | 0.2m | M35.5×P0.5 | C-Mount |

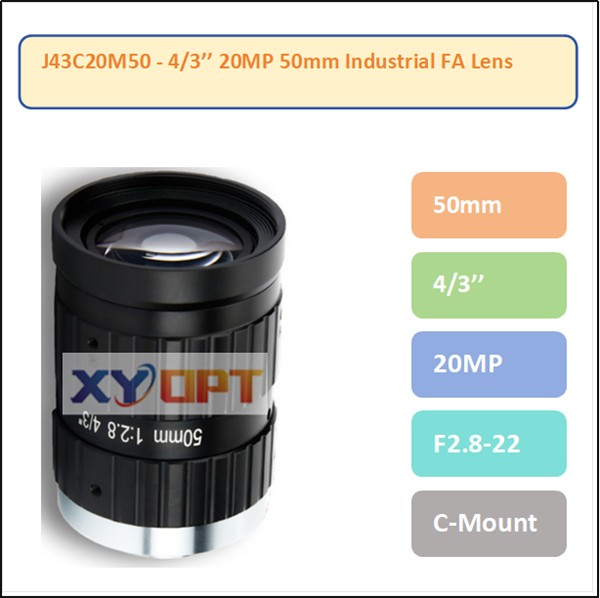

| J43C20M50 | 50mm | 4/3" | 2.8-22 | ﹤0.1% | 0.3m | M35.5×P0.5 | C-Mount |
Screw mount (S-Mount) lenses in M12, M10 thread
